ลิมิตสวิทช์ ไส้ลิมิตสวิทช์ Limit Switch รุ่น AL series and K244 series

No products in list

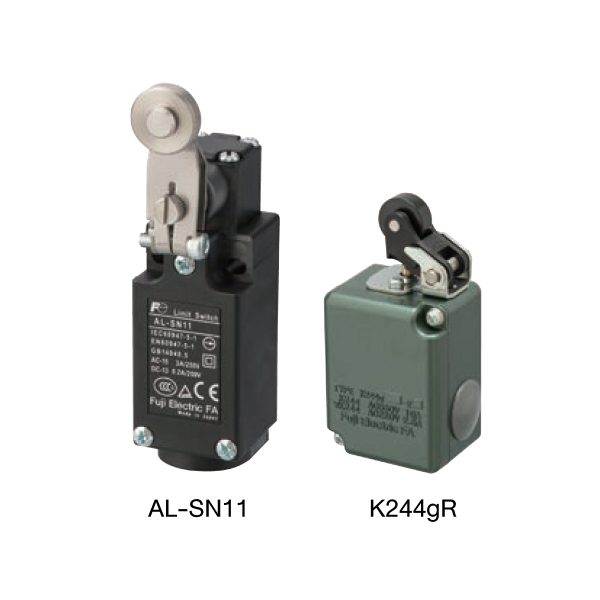

Limit switches
– AL series
– K244 series

●AL Series:
・Available in 2 vertical type structures: Compact and
compact wide case
・Comes standard with contact direct opening mechanism
・Double packed to ensure oil tightness and sludge mitigation

●K244 series
・Simple and robust structure
・Mechanical life expectancy of at least 10 million operations
(at continuous use of 3,000 operations per hour)

FUJI ELECTRIC LIMIT SWITCH
Limit Switch Description Contact Type Contact Arrangement Rated Current (A) Price.-
K244xP-2 Top push rod plunger with transparant plastic cover Normal Stroke 1NO+1NC 10
K244xP-2S Snap Action 1NO+1NC 10
K244xP-2U Make Before Brake 1NO+1NC 10
K244xP-2V Extended Stroke 1NO+1NC 10
K244g-2 Top push rod plunger cast metal clad Normal Stroke 1NO+1NC 10
K244g-2S Snap Action 1NO+1NC 10
K244g-2U Make Before Brake 1NO+1NC 10
K244g-2V Extended Stroke 1NO+1NC 10
K244gR-2 Top push rod plunger cast metal clad Normal Stroke 1NO+1NC 10
K244gR-2S Snap Action 1NO+1NC 10
K244gR-2U Make Before Brake 1NO+1NC 10
K244gR-2V Extended Stroke 1NO+1NC 10
