Druck PTX 1400 Pressure Transmitter Sensor Female 0 to 10 bar g

  • ±0.25% FS accuracy
  • NACE compatible wetted parts
  • Low-cost, rugged construction
  • Class I, Div 1 Intrinsically safe certified
  • Ranges from 5 to 10,000 psi
  • Electrical Connection = DIN connector (demountable)
  • Gauge configuration (sealed gauge for pressure above 1000 PSI; Absolute for 11.5 to 17 PSI model)
  • Agency approval markings available
รหัสสินค้า: IPTX 1400-PA หมวดหมู่: , ,


IPTX 1400-PA-11G GE” Pressure Transmitter G 1/4″ Female 0 to 10 bar g  7,055.00
IPTX 1400-PA-13G GE” Pressure Transmitter G 1/4″ Female 0 to 25 bar g  7,050.00

PMP1400 & PTX1400 Industrial Pressure Transducers

PMP1400: 3-wire, 0 to 5V output proportional to applied pressure,PTX1400: 4 to 20mA output proportional to applied pressure

All stainless steel transducers rated to IP65 with electron beam welded wetted parts

IP65 rated
Electron beam welded wetted parts
Compatible with hostile media
Protected against power supply fluctuations, reverse polarity, voltage spike and RFI
The PMP1400 range of sensors that have a 0-5volt output are not EX rated

Over press 1 bar for 100 and 250mbar ranges
Supply volt. 9 to 30V d.c.
Voltage spike prot. withstand 600V to ENV 50142
Zero offset/span setting ±0.5%/±5%
Long term stabil. ±0.2%
Combined non-linearity
hysteresis and repeat
±0.15% typ. ±0.25% max.
Operating temp. -20°C to +80°C
Weight 200g
Press connection G 1/4 female
Elect. connection DIN 43650 plug with free mating socket

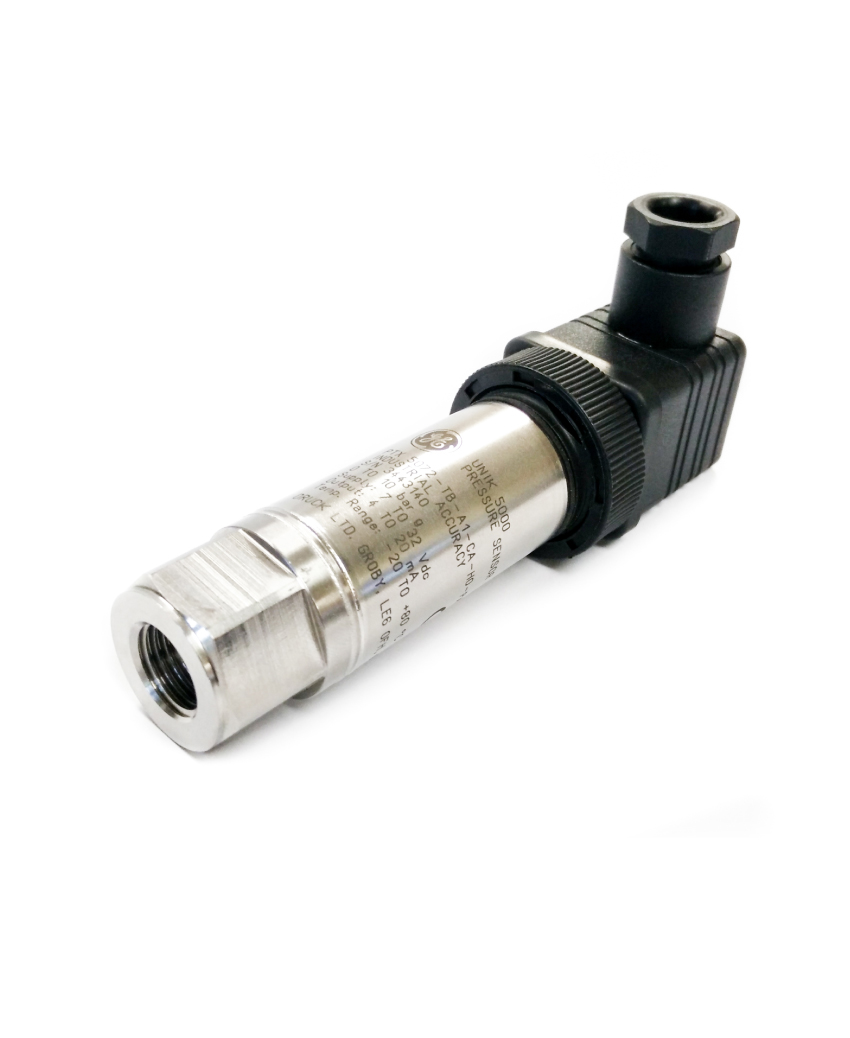

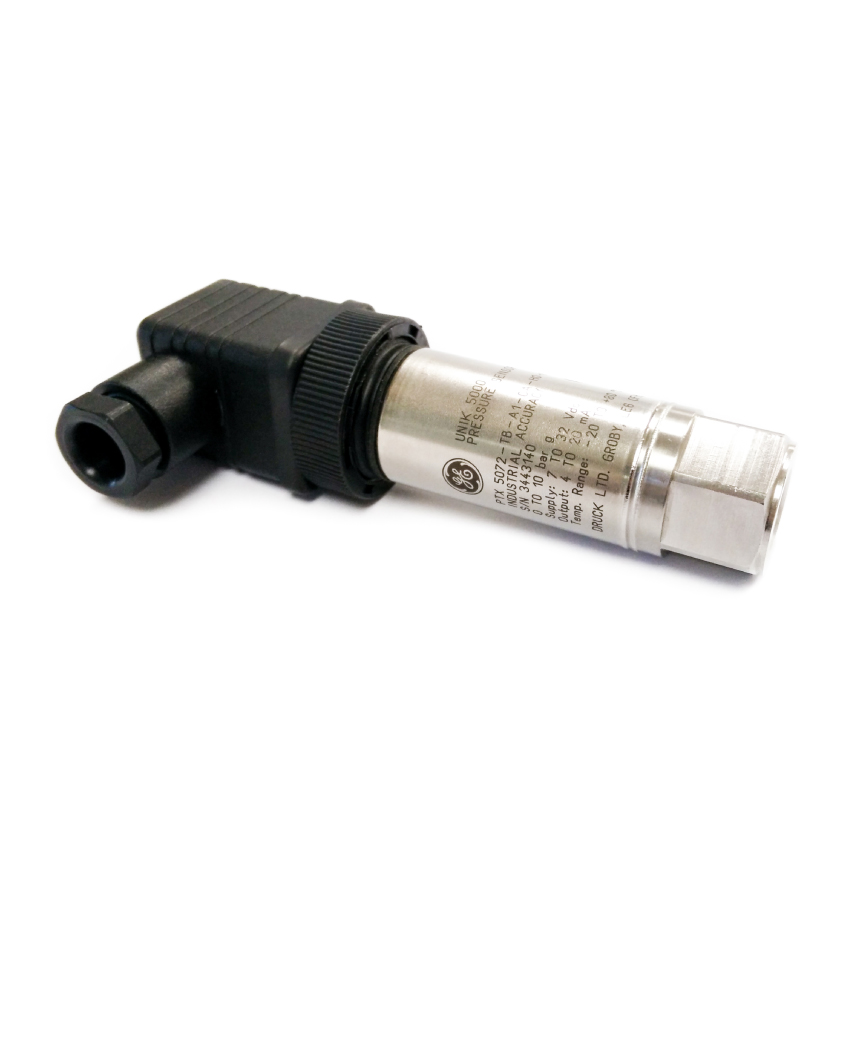

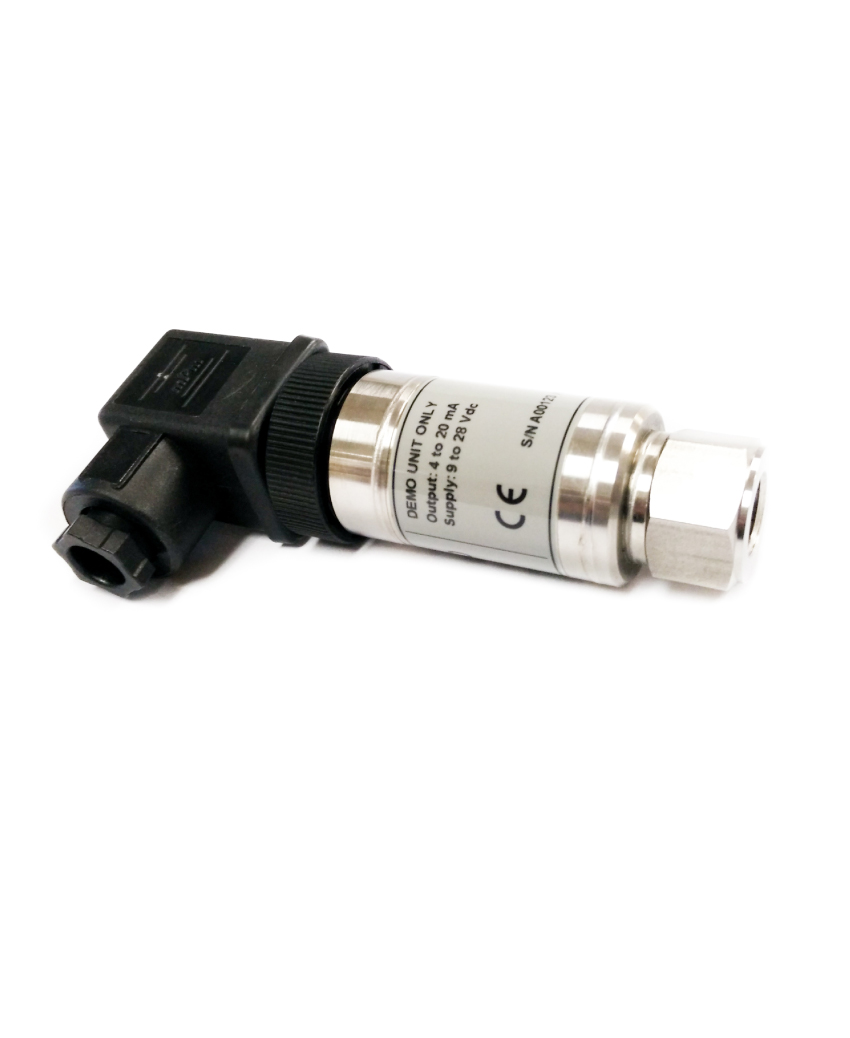

Druck PTX 1400-1Druck PTX 1400-2Druck PTX 1400-3

Druck PMP/PTX Transmitters & Transducers

The PMP/PTX 1440 range of Transducers/Transmitters have been designed for the use with aggressive media found in many industrial applications.
