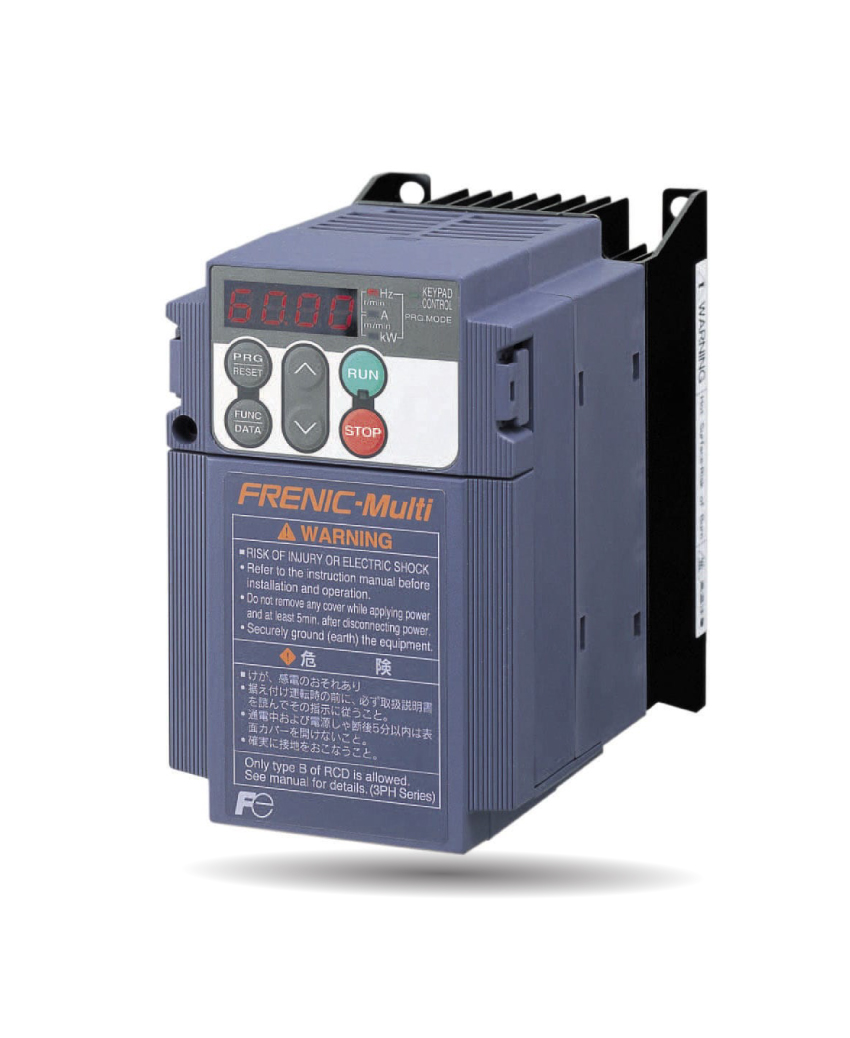

FRENIC-MULTI



• Output frequency: 0.1-400Hz.
• Capacity range: 0.1-15kW.
• Overload capability: 150%-1 min, 200%-0.5 sec.
• Enery-saving function, PID function
• Removable keypad device.
• Enable to be applicable for various application.
• Position control function, Speed control function…
• CPU 60 Mhz.

INVERTER FRENIC-MULTI

FRENIC – MULTI SERIES

INVETER MODEL APPLICABLE MOTOR (kW) OUTPUT RATED
CAPACITY (KVA)
PRICE (BATH)


















Input Power Source: 1 Phase 200-240 50/ 60Hz
Output Power Source: 3 Phase 200-240V 50/60Hz
FRN0.1E1S-7A 0.1  0.3
FRN0.2E1S-7A 0.2 0.57
FRN0.4E1S-7A  0.4  1.1
FRN0.75E1S-7A 0.75 1.9
FRN1.5E1S-7A 1.5 3.0
FRN2.2E1S-7A 2.2 4.1
Input Power Source: 3 Phase 380-480V 50/ 60Hz
Output Power Source: 3 Phase 380-480V 50/60Hz
FRN0.4E1S-4A 0.4 1.1
FRN0.75E1S-4A 0.75 1.9
FRN1.5E1S-4A 1.5 2.8
FRN2.2E1S-4A 2.2 4.1
FRN3.7E1S-4A 3.7 6.8
FRN5.5E1S-4A 5.5 9.9
FRN7.5E1S-4A  7.5 13.0
FRN11E1S-4A 11 18.0
FRN15E1S-4A 15 22.0
Input Power Source: 3 Phase 200-240V 50/ 60Hz
Output Power Source: 3 Phase 200-240V 50/60Hz
FRN0.2E1S-2A 0.2  0.57
FRN0.4E1S-2A 0.4 1.1
FRN0.75E1S-2A  0.75  1.9
FRN1.5E1S-2A 1.5 3.0
FRN2.2E1S-2A  2.2 4.1
FRN3.7E1S-2A 3.7 6.4
FRN5.5E1S-2A 5.5  9.5
FRN7.5E1S-2A 7.5 12.0
FRN11E1S-2A 11 17.0
FRN15E1S-2A 15 22.0
