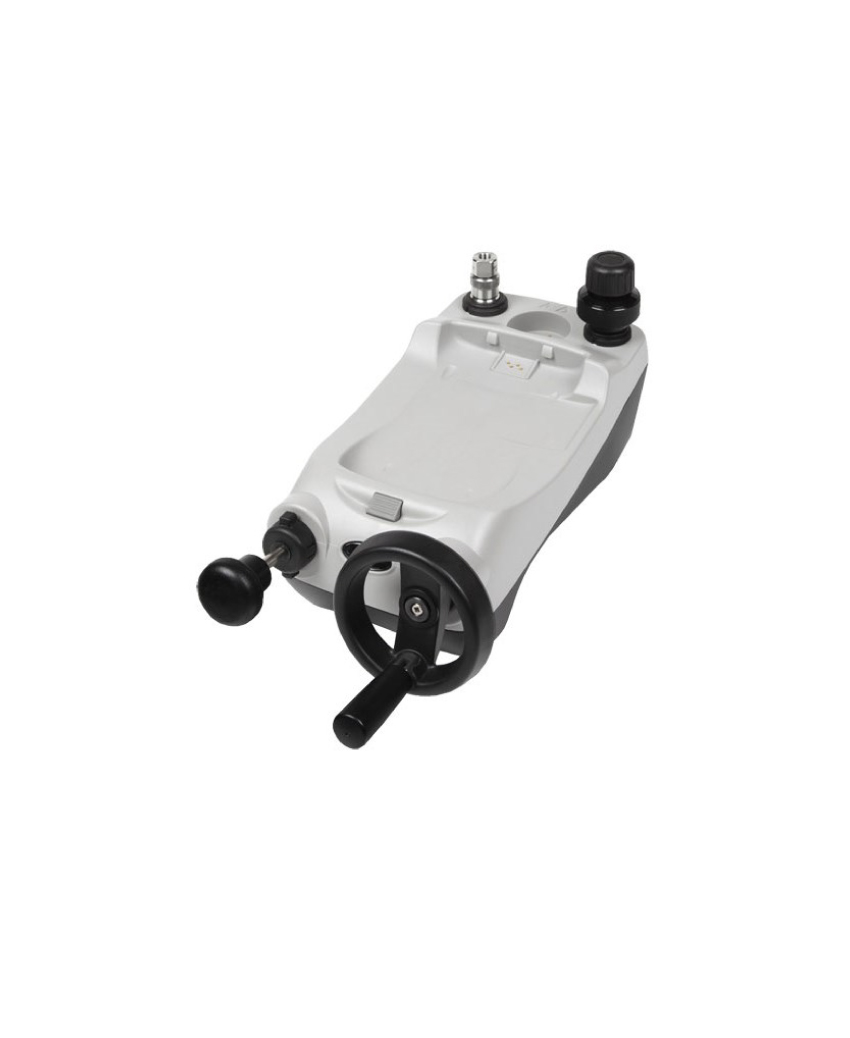

GE Druck PV621G Pneumatic Pressure Station 300 psi (20 bar)

41,850.00฿

Features

  • Bench-top use as comparators
  • Dual channel measurement available
  • Bench top use as comparators
  • For use with the DPI 620G Advanced Modular Calibration System
  • A uniquely capable, re-rangeable and self contained pressure test system
  • Pressure measurement and generation
  • 95% vacuum to 20 bar (300 psi) pneumatic
  • Standalone replacement for hand pumps
Qty:
IPV621 GE” Pneumatic Pressure Station 20 bar  41,850.00
IPV621G GE” Pneumatic Pressure Station 20 bar  28,480.00



There are three pressure generation stations: the PV 621/G, a pneumatic pressure generator for pressures 95% vacuum to 20 bar (300 psi); the PV 622/G, a pneumatic pressure generator for pressures 95% vacuum to 100 bar (1500 psi); and the PV 623/G, a hydraulic pressure generator for pressures up to 1000 bar (15000 psi). Each pressure station is designed for stand-alone operation as a pressure generator and can replace conventional hand pumps to provide greater efficiency and ease of use. They can also be used on the workbench as comparators.

Combining any of the pressure stations with a PM 620 pressure module and the DPI 620/G calibrator creates a uniquely capable, self-contained pressure calibrator.
