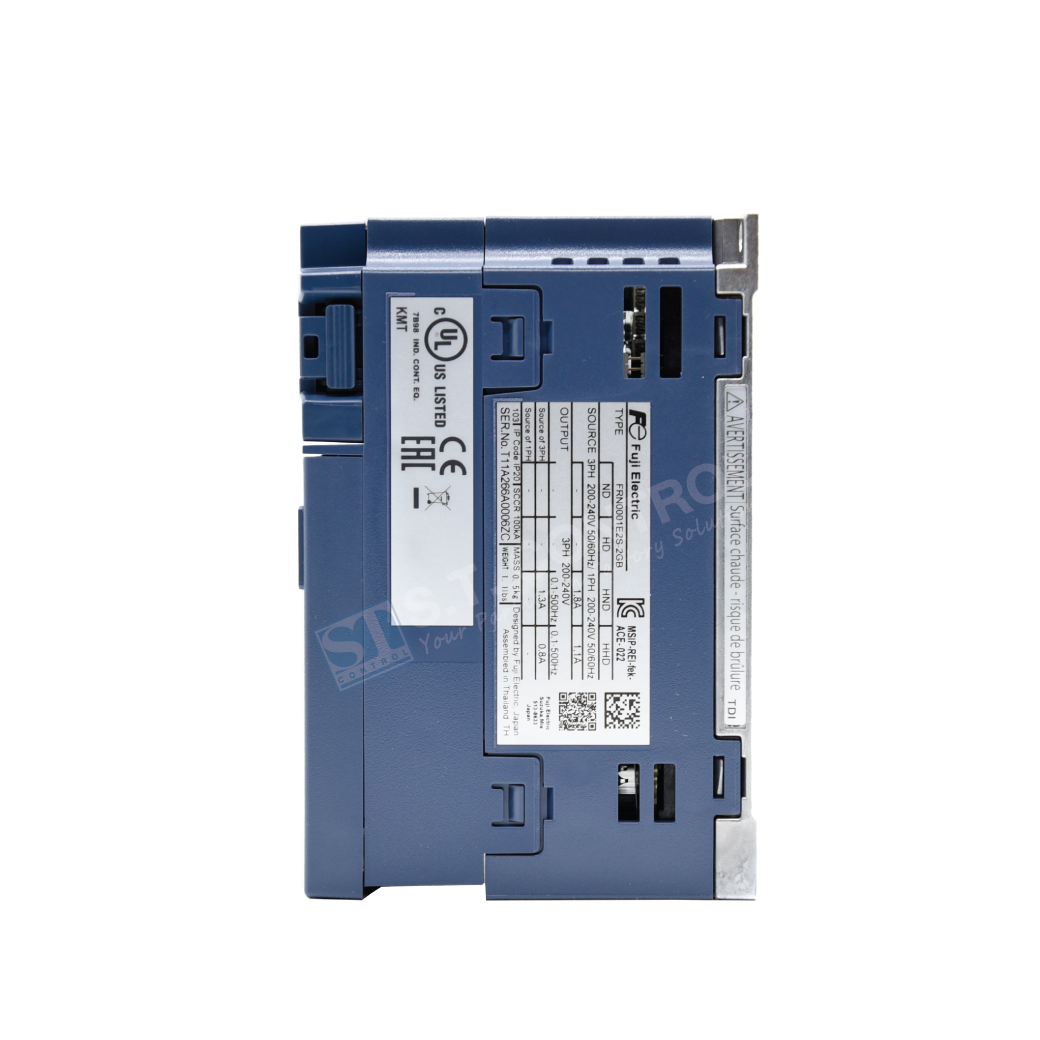

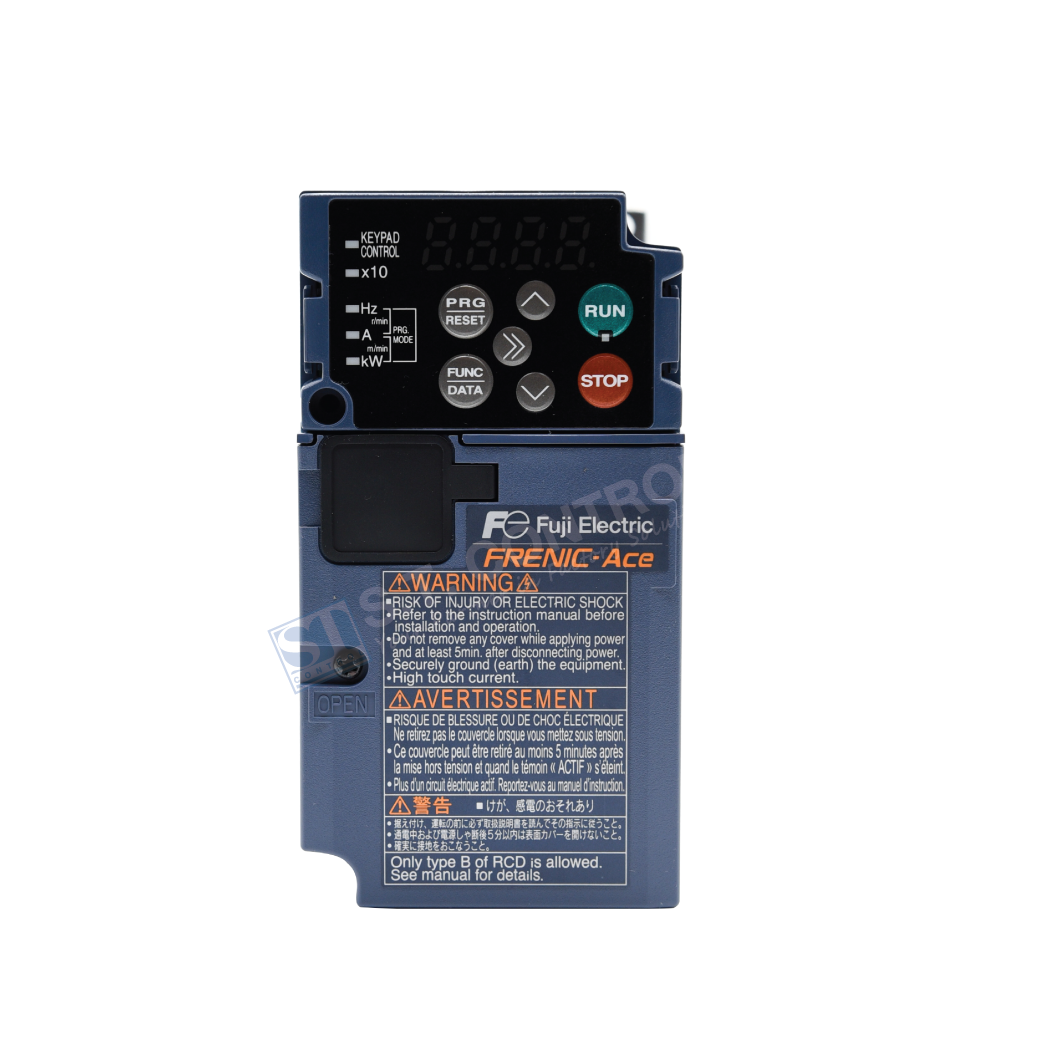

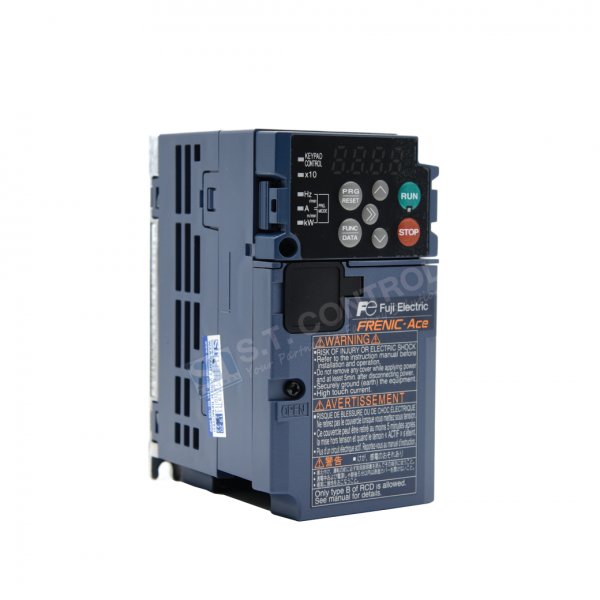

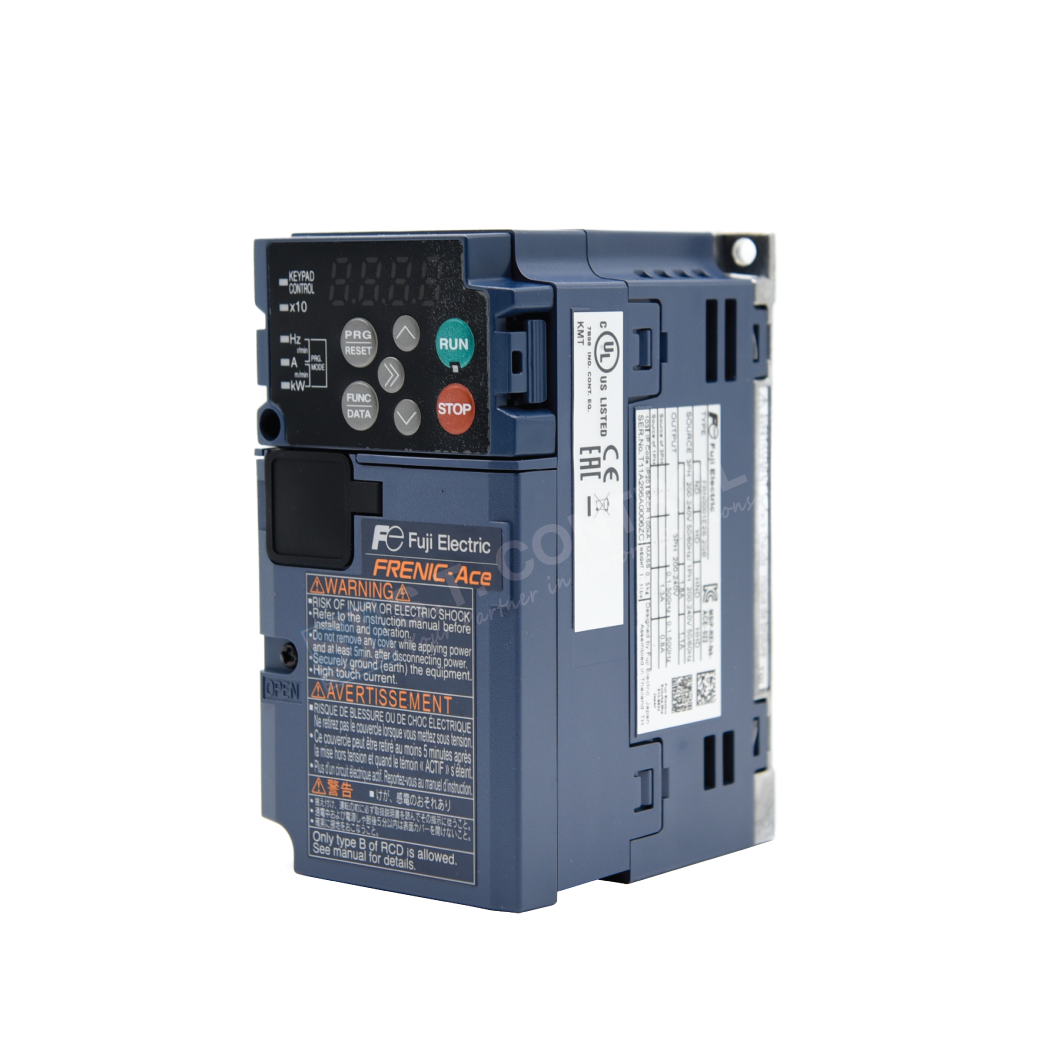

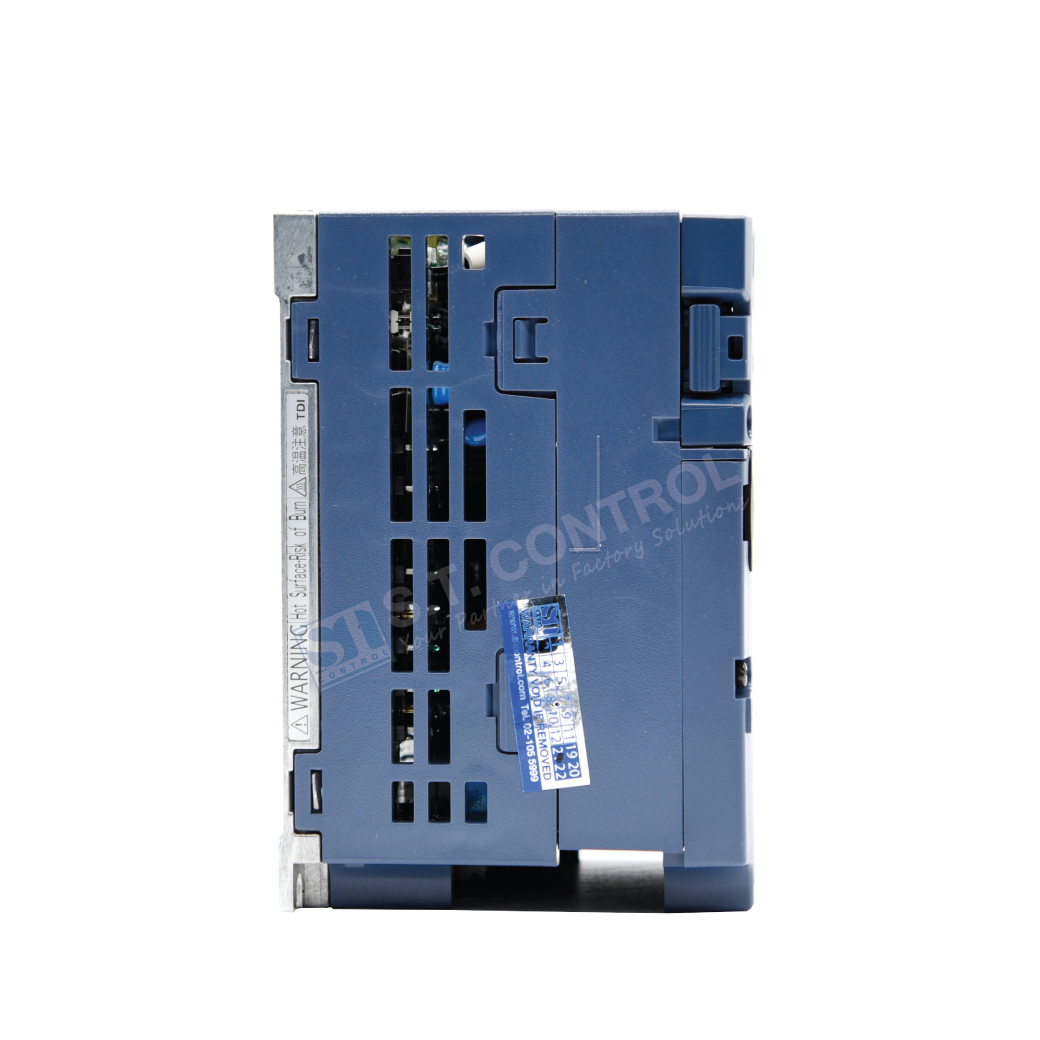

Inverter ACE Series FRN0001E2S-2GB

FUJI Inverter, ACE Series

The FRENIC-Ace Inverters are full feature drives offering great value and maintain high performance through optimal design for a wide range of applications for various machines and devices.

FRENIC-Ace Series Features Include:

  • Sensorless dynamic torque vector control
  • Motor vector control with PG (with optional card)
  • Synchronous motor with sensorless vector control
  • 2-channel on-board RS485 communications port
  • Standard CANopen compatibility
  • Removable keypad device
  • Removable control terminal block board
  • IP20, NEMA 1/UL Type 1 kit optional
  • UL 508C, CE, KC, UL single phase input, UL Plenums rating, RoHS
  • Standard stock from 1/8 to 40 hp
  • Over 50hp available, may have leadtimes
รหัสสินค้า: FRN0001E2S-2GB หมวดหมู่: , , , ป้ายกำกับ:



Input Voltage 200-240V, 3 Phase
Horsepower 1/8 hp
Output 3 Phase Output
Housing/Enclosure IP20 (NEMA 1 Kit Available)
Type of Drive General Purpose, High Performance, Sensorless Vector
Options Enclosed, STO (Safe Torque Off)
Manufacturer Fuji Electric


น้ำหนัก 0.8 kg
ขนาด 10 × 19 × 15.5 cm
