MULTILYZER STx NOX Set (O2, CO/H2-compensated, NO, NO2, Draft, Diff. Pressure)

  • Flue gas analysis for all liquid, gaseous and solid fuels
  • Latest ECOx sensor technology with 5 years guarantee for O2 and CO cells
  • Features Bluetooth® and QR code data transmission to the EuroSoft® mobile App
  • Extendable with CAPBs® units and high-quality accessories for all types of service measuring tasks
  • All-in-one: Flue gas analysis, (differential) pressure measurement, (differential) temperature measurement and air flow measurement

The MULTILYZER STx NOx Set perform accurate measurements of O2, CO/H2, NO, NO2, temperatures, pressure (draft) as well as precise calculation of various parameters such as lambda, combustion efficiency (Eta), flue gas loss (qA), dew point, NOx and CO2. The real NOx value is measured with the NO and NO2 sensor combination.

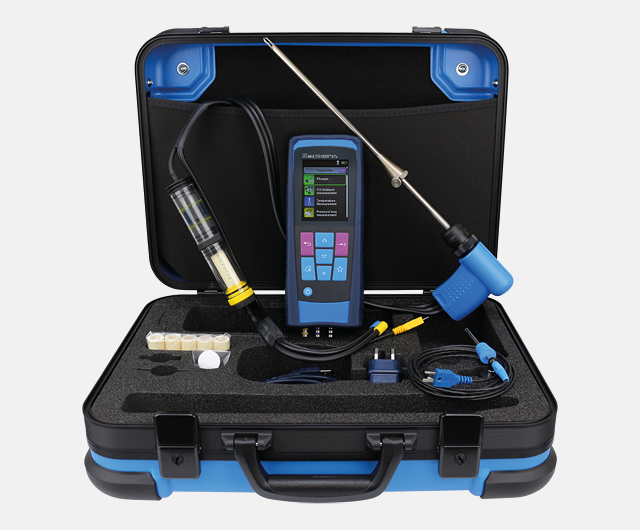

Scope of delivery
M04743210 MULTILYZER STx (O2, CO, NO, NO2, P-D7, BLE)
511010 Option: Datenlogger
510921 Basic handle with draft, 2.4 m
523229 Interchangeable Probe 300 mm
523493 Power supply unit
523506 Charging cable
500141.1 Air sensor 80 mm
500208 Filter set
511035 microSD card 4GB with card reader
523503 Case
