Systronik EUROLYZER® STx Pro Set (O2, COH2-compensated, Draft, Diff. Pressure)

Professional and robust flue gas analyzer set for servicing and inspecting oil, gas and pellets-fired heating systems as well.

หมวดหมู่: , ,


  • The scroll wheel allows a comfortable one-hand navigation through the intuitive measurement menus
  • Latest ECOx sensor technology with long service life, optimized calibration phase and short response time
  • Accurate H2-compensated CO cell with measuring range up to 10,000 ppm
  • Features Bluetooth® and QR code data transmission to the EuroSoft® mobile App
  • Extendable with CAPBs® units and high-quality accessories for all types of service measuring tasks

The EUROLYZER® STx Pro Set perform accurate measurements of O2, CO/H2, temperatures, pressure (draft) as well as precise calculation of various parameters such as lambda, combustion efficiency (Eta), flue gas loss (qA), dew point and CO2.

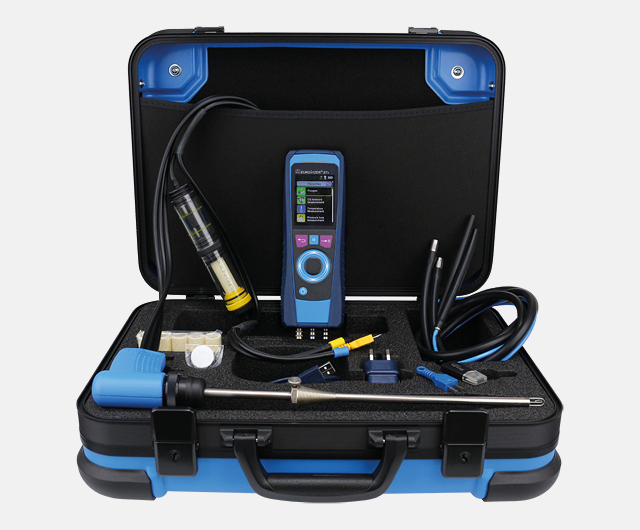

Scope of delivery
M04629110 EUROLYZER® STx (O2, CO, FZ-D7, BLE)
511010 Option: Datalogger
510921 Basic handle with draft, 2.4 m
523229 Interchangeable Probe 300 mm
523493 Power supply unit
523506 Charging cable
521844 Air sensor
500237 Connection set for differential pressure measurement
500208 Filter set
511035 microSD card 4GB with card reader
523503 Case
