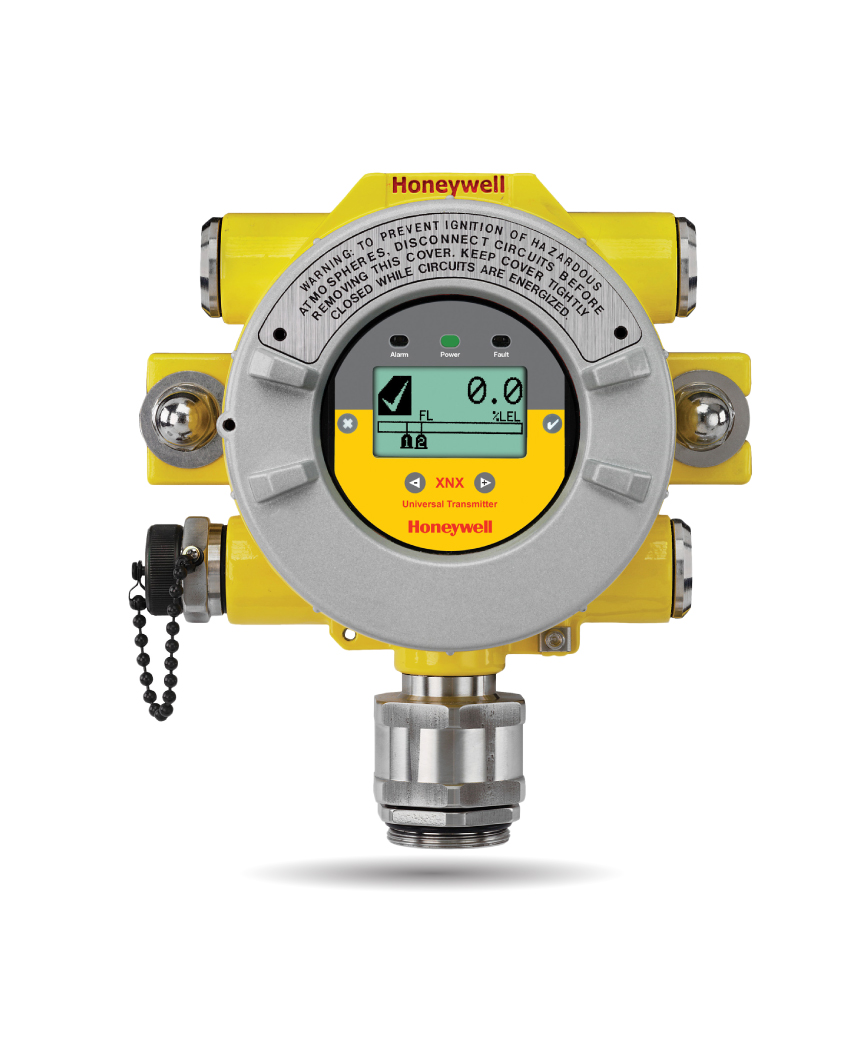

XNX™ Universal Transmitter

XNX™ Universal Transmitter

Supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs (saving customers time and money).
Features & Benefits
  • Flammable gas detection 0 to 100% LFL/LEL
  • Flexible operation options
  • Minimal training required
Quick Specs
  • Material: LM25 aluminum, painted (SS316 painted optional)
  • Temperature: -40° to +65°C / -40° to +150°F (sensor dependent)
  • Humidity: 20 to 90% RH (non-condensing)


Datasheet   User Manual
  Safety Manual   Specifications


รหัสสินค้า: 345676541 หมวดหมู่: , ,


[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Overview” tab_id=”1466562365628-177a85b6-2c60″][vc_column_text]

Product Overview

XNX’s advantage comes from a simple-to-use, low-maintenance universal platform that works with other safety equipment on a digital bus system, including Honeywell Analytics’ own Searchline Excel, Optima or other gas detectors, industry standard PLCs and third-party gas monitoring controllers.

XNX supports Electrochemical, Infrared and Catalytic Bead gas monitors and uses standard 4-20mA wiring and HART; options include Modbus, Fieldbus (pending) up to three relays and a local Hart Adapter for configuration and diagnostics using existing HART handheld devices.

With 200+ unique configurations, XNX satisfies Class 1/Class 2 intrinsically safe, explosion-proof requirements in upstream/downstream oil, chemical, wastewater and other industries.

The enclosure is available in stainless steel or aluminum, with a marine-grade coating. Five threaded ports, available in metric or NPT versions, and ruggedized mounting options provide ultimate installation flexibility.  Instrumentation built on various sensing technologies can be attached locally to the transmitter or remotely with the appropriate[/vc_column_text][/vc_tta_section][vc_tta_section title=”Popular Accessories” tab_id=”1466562365773-51769833-6067″][/vc_tta_section][vc_tta_section title=”Additional Docs” tab_id=”1466569036253-43300285-f91e”][vc_column_text]

XNX™ Universal Transmitter XNX™ Universal Transmitter
XNX™ Universal Transmitter  XNX Universal Transmitter – Engineering Specifications – English  XNX™ Universal Transmitter  XNX Foundation Fieldbus – Technical Manual – English
XNX™ Universal Transmitter  XNX Foundation Fieldbus User Manual  XNX™ Universal Transmitter  XNX Modbus® Board User Manual
XNX™ Universal Transmitter  XNX Relay Board User Manual  XNX™ Universal Transmitter  XNX EU Declaration of Conformity
XNX™ Universal Transmitter  MPD ATEX Certificate  XNX™ Universal Transmitter  MPD Sensor IECEx Certificate
XNX™ Universal Transmitter  XNX Transmitter IECEx Certificate  XNX™ Universal Transmitter  XNX Transmitter Flammable ATEX Certificate
XNX™ Universal Transmitter  XNX Transmitter Toxic PFG Certificate  XNX™ Universal Transmitter

[/vc_column_text][/vc_tta_section][vc_tta_section title=”Additional Information” tab_id=”1466569091188-eb42dba4-3391″][vc_column_text]

XNX™ Universal Transmitter Datasheet  XNX™ Universal Transmitter User Manual
 XNX™ Universal Transmitter Safety Manual  XNX™ Universal Transmitter Specifications
