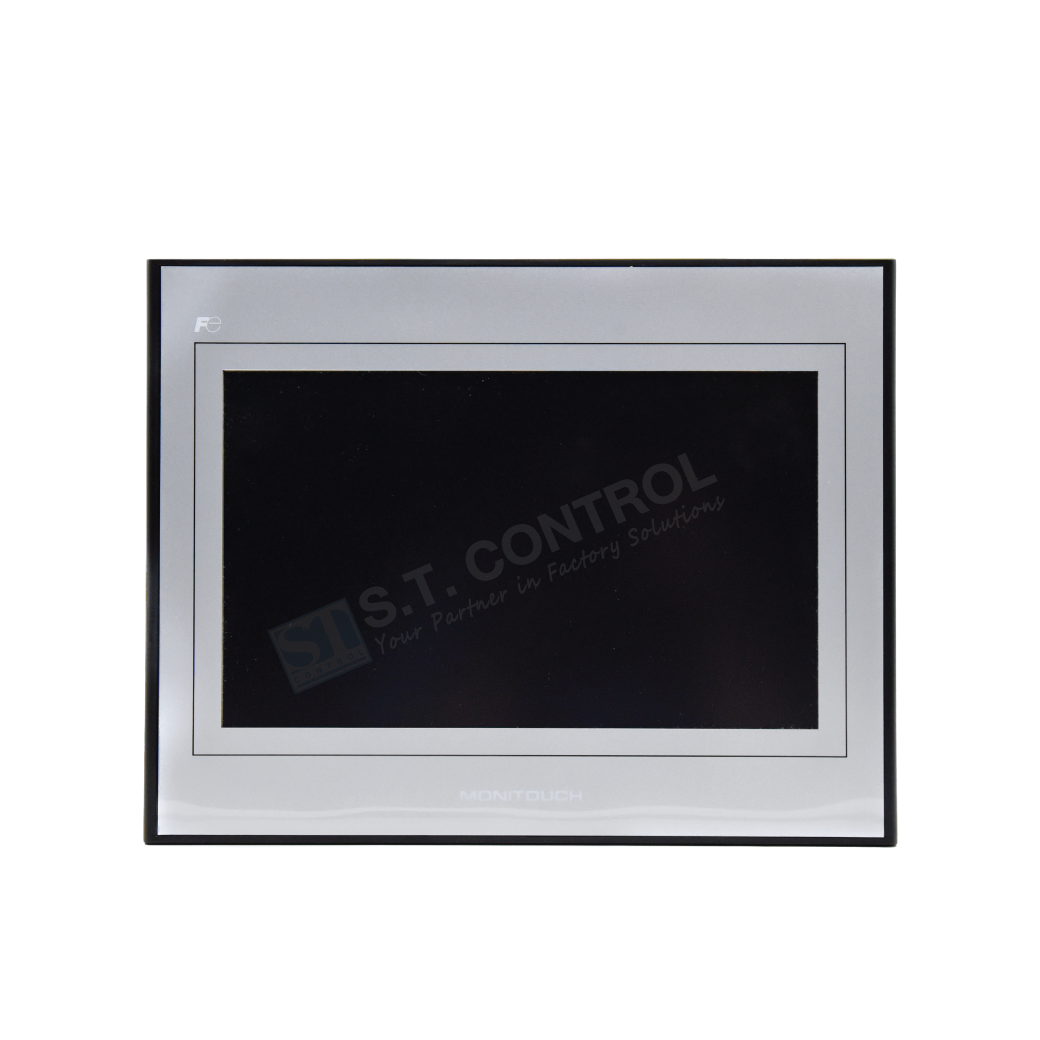

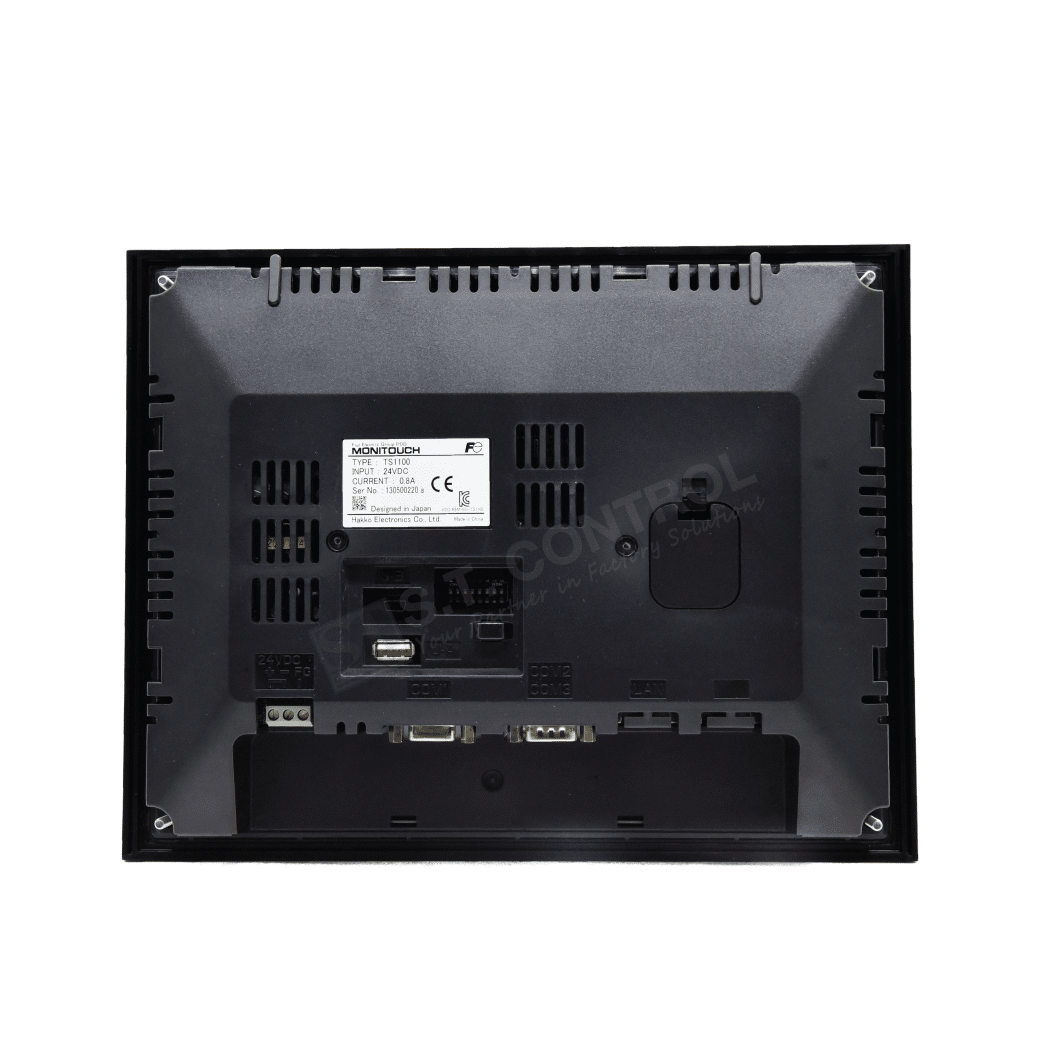

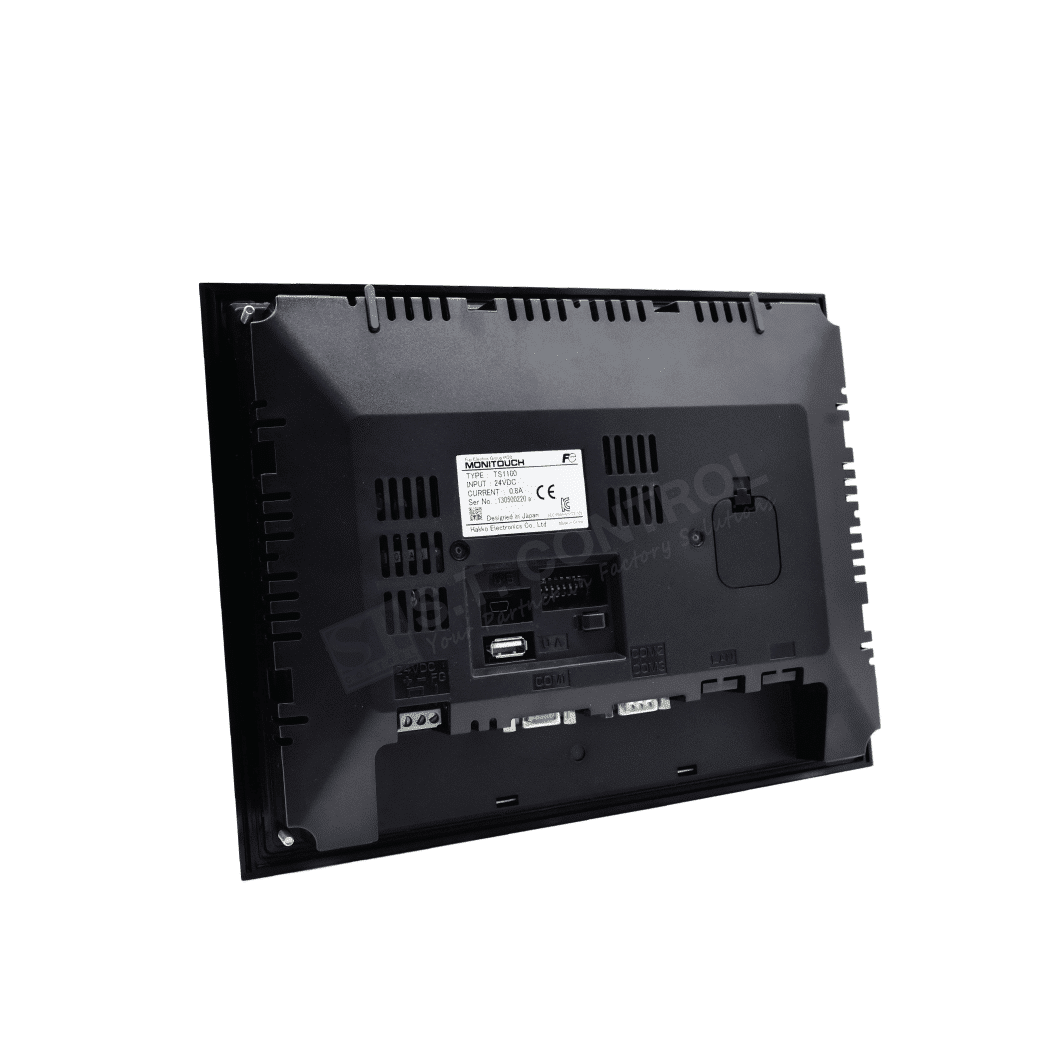

Fuji HMI TS1100 Series 10.2 Inches

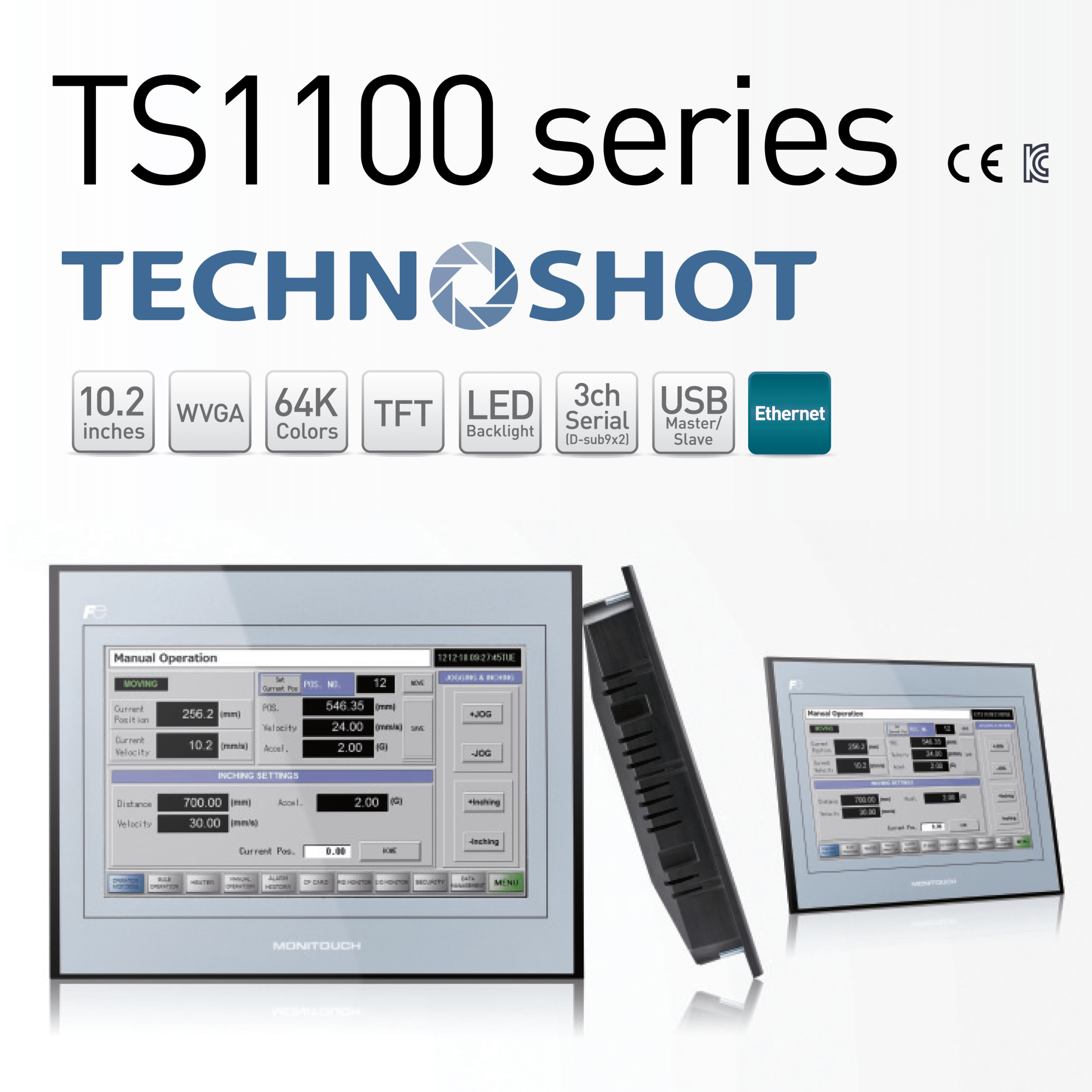

Lineup of TECHNOSHOT Series

The programmable displays in the TECHNOSHOT series are easy-to-see, and have bright TFT color liquid crystal wide screens.
A high-resolution display and high-speed response display give TECHNOSHOT panels a high power of expression.

รหัสสินค้า: FUJI HMI TS Series Model : TS1100 หมวดหมู่: , , ,

รายละเอียดเพิ่มเติม

Specifications of TS1100/TS1101

Model TS1100i TS1100 TS1101i
Display Display size 10.2” Wide
Resolution 800 × 480 dots
Display device TFT color LCD
Colors 65,536 colors
Backlight LED
Luminance 350 cd/m²
Touch switch Analog resistance film
Memory FROM 10.5 MB
SRAM 128 KB
External interface Serial COM1 RS-422/485, Asynchronous, Data length: 7,8 bits,
Parity: even/odd/none, Stop bit: 1,2 bits
Baud rate: 4800/9600/19200/38400/57600/76800/115200/187500 * 1bps
COM2 & COM3 RS-232C, Asynchronous, Data length: 7,8 bits,
Parity: even/odd/none, Stop bit: 1,2 bits
Baud rate: 4800/9600/19200/38400/57600/76800/115200 bps
RS-422/485(two-wire system), Asynchronous, Data length: 7,8 bits,
Parity: even/odd/none, Stop bit: 1,2 bits
Baud rate: 4800/9600/19200/38400/57600/76800/115200 bps
Ethernet 100BASE-TX/10BASE-T 100BASE-TX/10BASE-T
USB (Type A) 1 port (Ver. 2.0,Ver.1.1)
USB (Type mini B) 1 port (Ver. 2.0,Ver.1.1)
Clock Battery Coin-type lithium primary battery
Calendar accuracy Gap±5 sec. per month (Ambient temperature 25 °C)
Power supply Permissible range of voltage DC 24 V ± 10 %
Demand
(maximum rating)
16 W or less
Physical environment Ambient operating temperature 0~50 °C * 2
Ambient storage temperature -10~60 °C * 2
Relative humidity 85 % RH or less(without dew condensation, Max. wet bulb temperature:39 °C or less)
Operation altitude 2,000 meters or less
Operation atmosphere Not exposed to corrosive gas or excessive dust (free of conductive dust)
Contamination level Level 2
Installation conditions Dimensions
W × H × D
283.0 × 220.0 × 42.0 mm
Panel cutout
W × H
257.0 × 199.0 mm (+0.5/-0)
Protect structure Front panel: Compatible with IP65 (when waterproof gasket * 3is used.), Rear cabinet: Compatible with IP20
Form: Single unit, Installation method: Panel mounting
Case color Black
Compatibility CE, KC CE, KC, UL, cUL

*1 Available only when connected with SIEMENS MPI.

*2 Keep wet bulb temperature under 39°C to avoid an accident.

*3 Option
