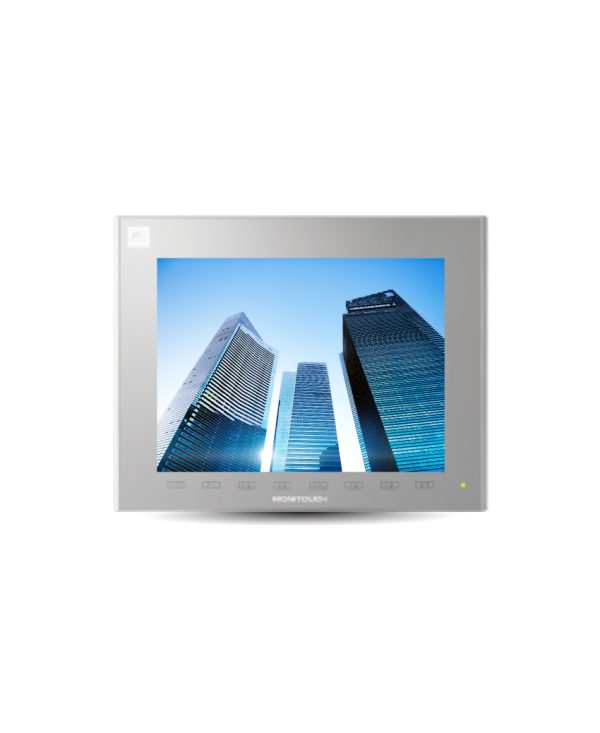

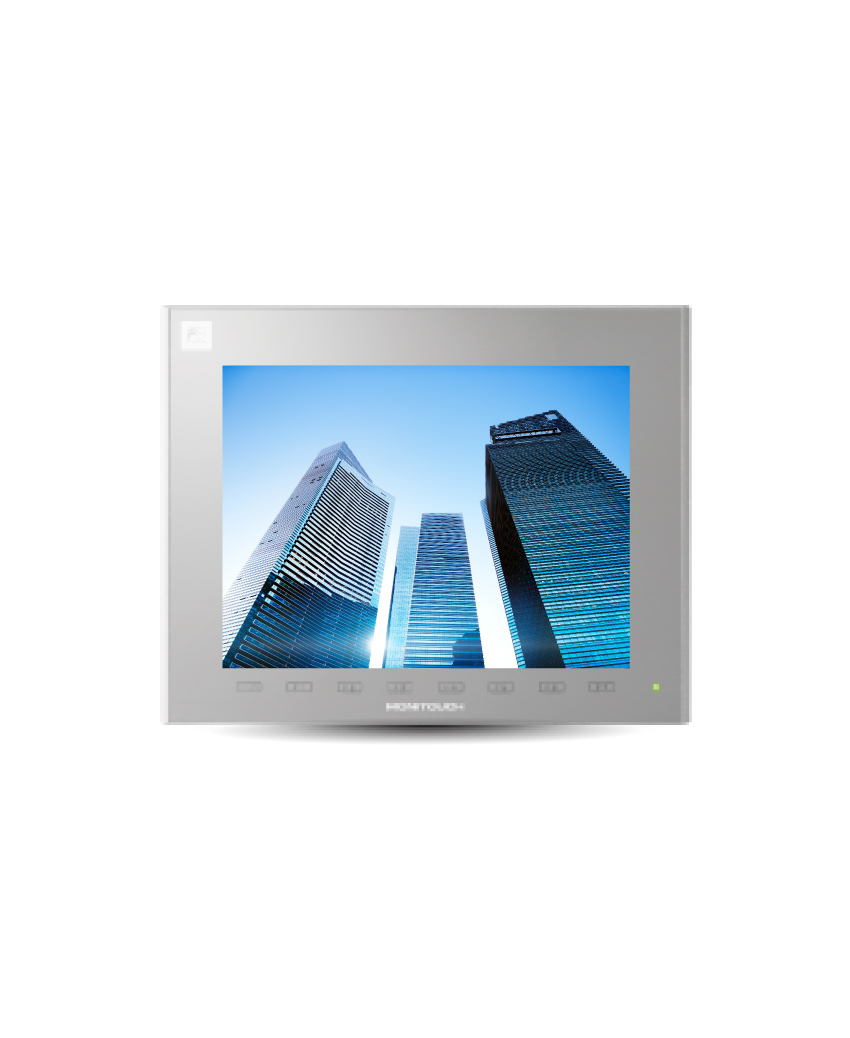

V9120iS series

Compare
หมวดหมู่: , , ,

Dimensions and Part Names

V9120iS
Power supply Rated voltage 100-240V AC/ 24V DC
Permissible range of voltage AC: -15%, +10%/ DC: ±10%
Permissible momentary power failure AC within 20ms, DC within 1ms
Demand (maximum rating) AC: 70VA or less/ DC: 28W or less
Insulation resistance DC500V 10MΩ or more
Physical environment Ambient temperature 0~50℃ *1
Ambient humidity 85%RH or less (without dew condensation) *1
Operation altitude 2,000 meters or lower
Atmosphere Not to be exposed to corrosive gas, or conductive dust
Storage temperature -10~60℃ *1
Storage humidity 85%RH or less (without dew condensation) *1
Overvoltage category Category II
Contamination level Level 2
Mechanical operating conditions Resistance to oscillation Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5-9Hz, pulsating with:3.5mm,
9-150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Resistance to shock Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z:
3 directions, three times each (18 times in total)
Electric operating conditions Resistance to noise Noise voltage: 1,500Vp-p, pulse width: 1μs, pulse rise time: 1ns
Resistance to static discharge Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions Grounding Grounding resistance: Less than 100Ω, FG/SG separation
Structure Protection structure: Front case: IP66, Type 4X/13 *2(when water-proof gasket is used), Rear case: IP20, single unit, installation method: panel mounting
Cooling system Natural air cooling
Dimensions W*H*D(mm) 327.8×261.0×54.9
Panel cutout (mm) 313.0×246.2(+0.5/-0)
Case color Light gray
(black front housing for black model)
Material PC resin
  • *1: Use at a wet-bulb temperature of 39°C or less because higher temperatures may cause failure.

Performance Specifications

Screen memory (FROM) 64MB
Backup memory (SRAM) 800KB
Display Display device TFT color LCD
Resolution 800×600
Display size 12.1″
Colors 16.7 million *3
Backlight LED
Backlight life 70,000 hours
Touch switch Type Analog resistance film
Function switch Quantity 8
External interface D-Sub 9-pin (CN1) RS-232C/ RS-485(2-wire system)/ RS-422(4-wire system),
Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none,
Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500*4 bps
Modular 8-pin
(MJ1/MJ2)
RS-232C/ RS-485(2-wire system), Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits,
Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
SD card One card slot provided as standard
Ethernet 1ch,
Baud rate: 100Mbps,
10Mbps
Wireless LAN *5 Complies with IEEE802.11b/g/n (2.4GHz)
USB Type A,Type mini-B(Ver.2.0)
Sound output 1ch provided as standard
Clock Backup period 5 years (Ambient temperature 25°C)
Calendar accuracy Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied)
Standard CE marking *6 EN61000-6-2,EN61000-6-4,EN50581 *8
UL・cUL *6 UL61010-1、UL61010-2-201*7 、ANSI/ISA 12.12.01 *2
KC *8*9 Compliant
Radio Act *5 Japan: TELEC
Classification Standard *2*8 Nippon Kaiji Kyokai (NK)
American Bureau of Shipping (ABS)
Lloyd’s Register of Shipping (LR)
Det Norske Veritas (DNV)
  • *2: DC products only. Hardware of Ver. b or later.
  • *3: For displaying pictures, 3D parts,video, and RGB input (excluding high-speed mode) only. Other parts are displayed in 65,536 colors.
  • *4: Only for Siemens MPI (Incompatible with DUR-00).
  • *5: Wireless LAN-compatible products only.
  • *6: DC products only.
  • *7: Only for Hardware Ver. f or later. Applicable standard for Hardware Ver. a to e is UL 508.
  • *8: Wireless LAN compatible products are not supported.
  • *9: Black model not certified.
